SONEM Liquid Analyzer

1
2
3
4

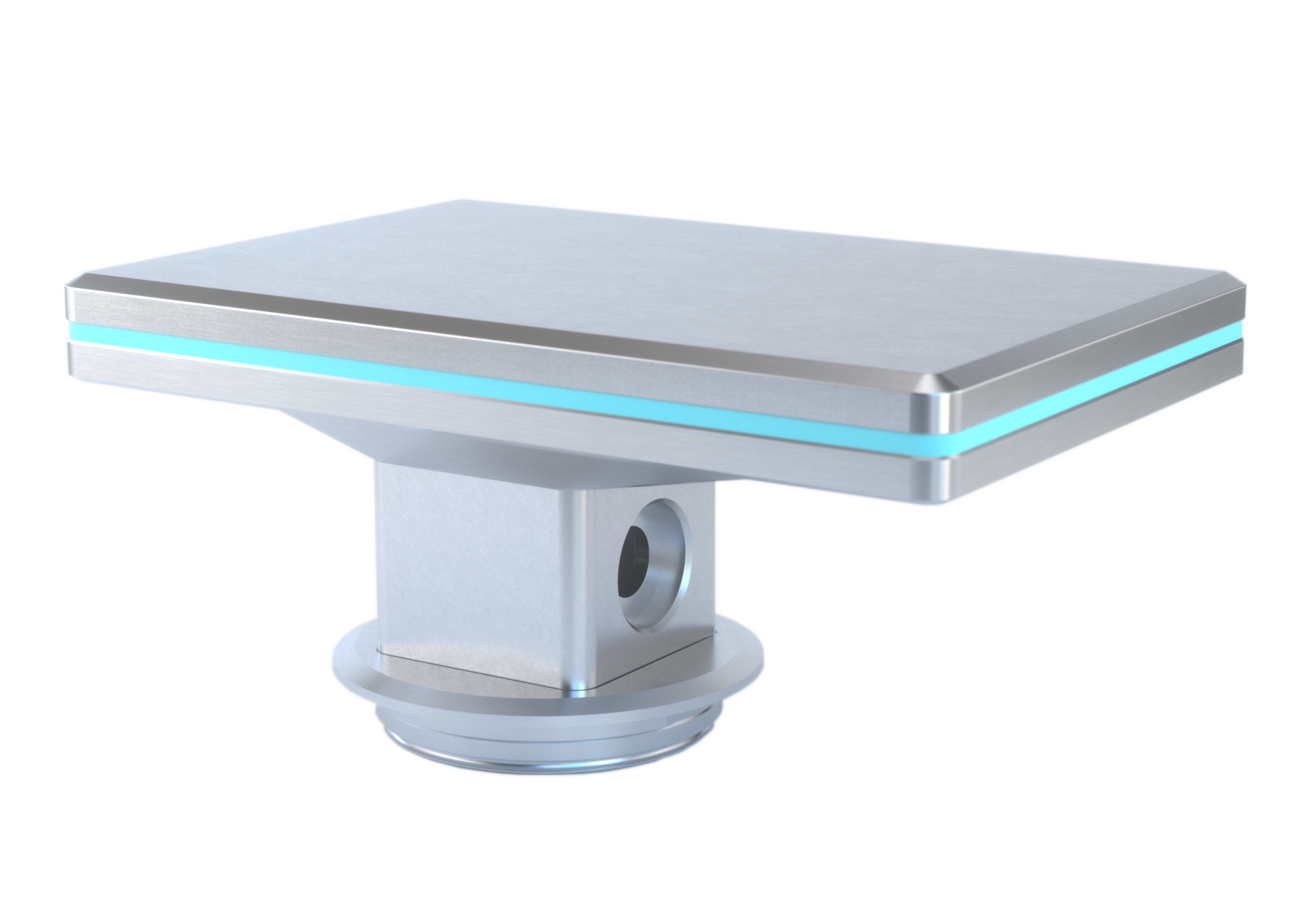

SLA Varinline Sensor 1
1
Control electronics

The specially developed circuit board takes over the control of the internal sensor technology as well as the communication with further peripherals and customer systems.

2

Probes

The ultrasonic probes are integrated in the process connection of the sensor, whereby the measurement is reflective. Depending on the application, the probes can operate in different frequency ranges.

3

Flange

Due to the flexibility of our measuring system, different tube diameters can be equipped with our system. For universal use, the process connection type N is currently offered.

4

Housing

Due to its universal connection and compact design, the sensor can be integrated in many places in the pipe system. The sensor meets the highest requirements in terms of tightness and temperature resistance.
